The most common Suzuki King Quad 400 problems are electric start failure, a battery that won’t charge, carburetor flooding on older models, running hot, weak rear brakes and transmission complaints. Many trace back to the charging system or a dirty carburetor, and most can be diagnosed with a basic multimeter.
The KingQuad 400 uses a 376cc single-cylinder four-stroke that is air/oil cooled, not liquid cooled, so it has no radiator or coolant. Older models use a carburetor, while later models, such as the 2017 KingQuad 400 ASi, are fuel-injected. It comes as the ASi with Suzuki’s QuadMatic automatic CVT, or the FSi with a five-speed manual gearbox and automatic clutch. Brakes are dual hydraulic discs up front and a drum at the rear.
Each problem below lists the symptoms, the usual cause, how to fix it and the part you may need. Start with the cheapest checks first.
Suzuki King Quad 400 Problems at a Glance
| Problem | Common symptom | Most likely cause | First fix to try | Part you may need |
|---|---|---|---|---|
| Electric start failure | Solenoid clicks, pull start works | Weak battery, bad connections | Charge battery, clean grounds | Battery, starter solenoid |
| Battery not charging | Battery drains while riding | Regulator/rectifier or stator | Test charging voltage | Regulator/rectifier, stator |
| Carburetor flooding (older models) | Fuel in airbox, fouled plug, rough idle | Float stuck, worn needle and seat | Clean carb, check float | Carb rebuild kit, needle and seat |
| Running hot | Power fades, oil smells hot | Mud on cylinder and oil cooler, low oil | Wash fins, check oil | Engine oil, oil filter |
| Weak rear brake | Poor stopping, squealing | Water or mud in drum, wear, adjustment | Clean and adjust rear drum | Brake shoes |
| Transmission complaints | Belt slip (ASi), hard shifting (FSi) | Worn belt, low oil, linkage | Inspect belt, check oil, adjust linkage | Drive belt, engine oil |
1. Electric Start Failure
One owner of a 2008 King Quad 400FS found the solenoid only clicked when he pressed start, though the quad started on the pull cord. With a charger connected it spun fast but didn’t fire, and battery voltage dropped to about 10 V while cranking. The charging system had also stopped working.
Common causes
- Weak or worn-out battery. Voltage collapses when the starter draws current.
- Loose or corroded battery terminals and ground straps
- Charging system failure that left the battery flat (see problem 2)
- Faulty starter solenoid or starter motor
How to fix it
- Fully charge the battery. It should read about 12.6 V at rest.
- Crank the engine while someone watches the meter. If voltage drops far below about 10–11 V, the battery is probably worn out.
- Clean and tighten both battery terminals, the main ground and the starter cable.
- If a good battery still only makes the solenoid click, test the solenoid and starter.
- If the battery keeps going flat, fix the charging system before buying another battery.
Parts you may need: battery, starter solenoid, battery terminal cleaner.
2. Battery Not Charging (Regulator/Rectifier or Stator)
When the charging system fails, the King Quad runs on battery power alone until it dies. On Suzuki King Quads, owners have traced this to a failed regulator/rectifier, damaged stator wiring, or extra accessories such as LED light bars and heated grips overloading the system.
Symptoms
- Battery is fine when you start but flat after a long ride
- Voltage at the battery doesn’t rise when you rev the engine
- Lights dim, then the engine sputters and dies
How to fix it
- With the engine running and revved slightly, measure voltage at the battery. A healthy system should read clearly above battery voltage (roughly 13.5–14.5 V). If it stays near or below 12.5 V, it isn’t charging.
- Inspect the wiring and connector between the stator and the regulator/rectifier for breaks, burned pins or melted plastic.
- Test the stator with a multimeter using the resistance and AC output specs in your service manual.
- If the stator and wiring test good, replace the regulator/rectifier. This was the fix in several owner cases.
- If you run a light bar or heated grips, make sure your total accessory load is within what the charging system can supply.
Parts you may need: regulator/rectifier, stator, wiring connector.
3. Carburetor Flooding and Rich Running (Older Models)
On carbureted King Quads, a stuck float or worn needle and seat lets fuel overfill the bowl. One owner of a 2008 King Quad 400 found the airbox filling with what looked like straight gas after the quad ran out of fuel and sat. It cranked but would not start, even with a new plug.
Symptoms
- Fuel in the airbox or dripping from the carb overflow
- Black, wet, fouled spark plug
- Rough idle, flooding when the choke is used, hard cold starts
- Fuel smell in the engine oil
Common causes
- Float stuck open or set at the wrong height
- Worn needle and seat, or a shrunken O-ring on the seat body
- Old fuel varnish after storage
How to fix it
- Turn off the fuel and remove the carburetor.
- Clean the bowl, jets and passages with carb cleaner.
- Check the float for fuel inside it. Replace the needle and seat and its O-ring if worn.
- Set the float height to the service manual spec. Don’t guess it.
- If fuel got into the crankcase, change the engine oil before running it. Gas-thinned oil damages the engine.
Fuel-injected King Quad 400s don’t have this problem. If yours is EFI and won’t start, focus on the battery, fuel pump and fuel quality instead.
Parts you may need: carburetor rebuild kit, needle and seat with O-ring, spark plug, engine oil and filter.
4. Running Hot
Because the engine is air/oil cooled, it depends on air flowing over the cylinder fins and through the oil cooler, plus clean oil. Mud and slow, heavy work in hot weather are the usual causes of heat problems.
How to fix it
- Wash dried mud off the cylinder fins and the oil cooler with a gentle stream of water when the engine is cool.
- Check the oil level and change the oil and filter if it is dark or overdue. Oil is part of the cooling system on this engine.
- Avoid long periods of low-speed, heavy work. Let the engine idle or rest to cool down.
- Ignore advice about coolant, radiators or water pumps. This engine doesn’t have them.
Parts you may need: engine oil, oil filter.
5. Weak or Noisy Rear Brake
The rear brake is a drum. Water, mud and wear reduce its grip over time.
How to fix it
- After water crossings, apply the brakes lightly while riding to dry them.
- Adjust the rear brake according to the owner’s manual.
- Remove the drum, clean out mud and check the shoes for wear.
- Replace worn shoes and check the front disc pads at the same time.
Parts you may need: rear brake shoes, front brake pads.
6. Transmission Complaints
ASi (automatic CVT)
- Belt slip or burning smell: use low range for loads and mud, keep water out of the belt case, and replace a glazed or worn belt.
- Jerky engagement: clean the belt case and inspect the clutch.
FSi (manual with automatic clutch)
- Hard or missed shifts: check engine oil level and condition first, then adjust the shift linkage.
- Creeping in gear or slipping: have the clutch checked.
Parts you may need: drive belt (ASi), engine oil and filter.
Maintenance That Prevents Most King Quad 400 Problems
| How often | What to do |
|---|---|
| After muddy rides | Wash cylinder fins and oil cooler, check air filter |
| Monthly | Check battery voltage, terminals and tire pressure |
| Every season | Inspect brakes, belt (ASi) and wiring connectors |
| Per owner’s manual | Change engine oil and filter, spark plug, valve clearance |
| Before storage | Fresh fuel with stabilizer, battery maintainer |
Frequently Asked Questions
Is there a recall on the Suzuki King Quad 400?
We did not find a U.S. CPSC recall for the KingQuad 400. Suzuki has recalled other KingQuads, including 2008–2011 KingQuad 450, 500 and 750 models for fuel tanks that could leak, and 2016–2017 KingQuad 750s for a battery problem. Ask a Suzuki dealer to check your VIN for open campaigns.
What engine is in the King Quad 400?

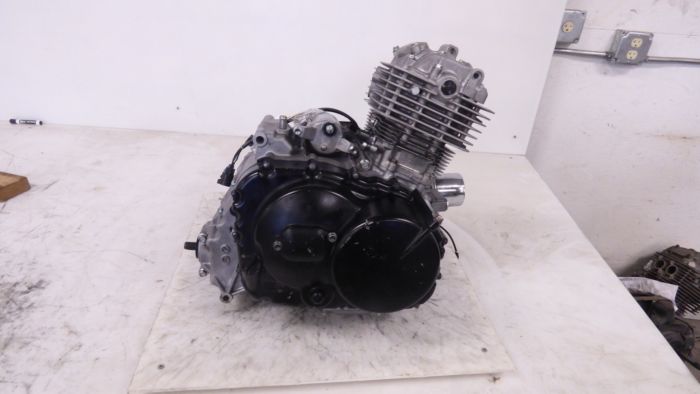

A 376cc single-cylinder, four-stroke, SOHC engine that is air/oil cooled. Older models are carbureted; later models are fuel-injected.
What is the difference between the King Quad 400 ASi and FSi?
The ASi has Suzuki’s QuadMatic automatic CVT. The FSi has a five-speed manual gearbox with an automatic clutch, so you shift with your foot but don’t use a clutch lever.
Does the King Quad 400 have a radiator?
No. It is air/oil cooled, so there is no radiator or coolant. Keep the cylinder fins and oil cooler clean and the oil fresh.
Why won’t my King Quad 400 start?
Start with the battery and connections, then the charging system. On older carbureted models, also check for a flooded carburetor and fuel in the airbox.
Conclusion
Most Suzuki King Quad 400 problems come down to the battery, the charging system and, on older models, the carburetor. Test voltage before buying parts, keep the fins and oil clean, and use fresh fuel, and this quad stays one of the simplest utility ATVs to keep running.
